Name: Automatic Flash Point Tester
SKU: 065POZJKXY
Availability: InStock
Rating: 5 (1 reviews)

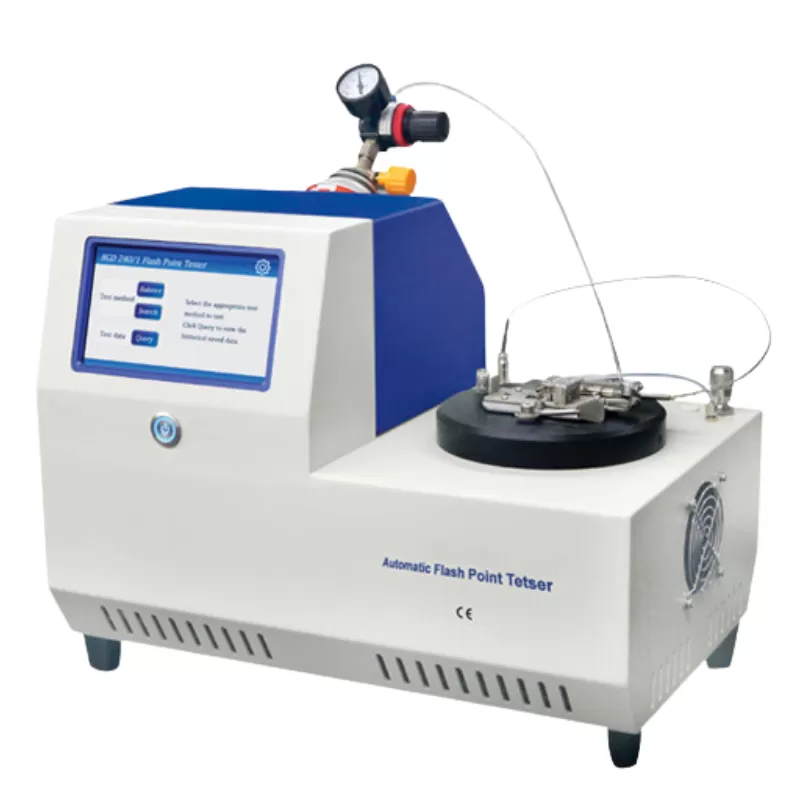

Automatic Flash Point Tester

Contact

Product code: 065POZJKXY

The QualiAFPT Automatic Flash Point Tester is designed based on the rapid equilibrium closed cup method. It efficiently…

Automatic Flash Point Tester Technical Specifications

Flash Point Temperature Range	QualiAFPT/1: -30℃ to 100℃ QualiAFPT/2: Room Temperature to 300℃
Tested Flash Point Temperature Accuracy	0.5℃
Sample Volume	2ml
Heating Rate	Customize, quickest speed 5℃/min, longest duration 99min, highest temperature 100℃ (300℃ for QualiAFPT/2 Model)
Cooling Method	Built-in cooling module (without external cooler 0℃～100℃)
Output Interface	USB
Size	460mm×330mm×350mm
Net Weight	15 KG
Operate Temperature	15℃～35℃
Power Supply	220/240V，50/60Hz (110V upon request)
Accessories included	Steam source regulation component Silicone tube Injector Thermometer O-Type Seal Ring (5pcs)
Optional Accessories	Special injector for high viscosity (thick) sample 4ml injector for powdery objects Stand oil of Flash Point (49.7℃)
Ordering Information	QualiAFPT/1 - Automatic Flash Point Tester (-30～100℃) QualiAFPT/2 - Automatic Flash Point Tester (Room Temperature ～300℃)

Automatic Flash Point Tester Key Features:

Can detect the flash point within a specific temperature range, either between -30°C and 100°C (QualiAFPT/1) or at room temperature up to 300°C (QualiAFPT/2), with an average rate of heating.

All functions are accessible via touch screen and digital display.

Equipped with two test procedures: rapid balanced mode and average rate heating mode.

Users can set various parameters such as heating mode, time, temperature, and average rate heating.

Automatic planning board action facilitates ignition decline and flash point detection.

Gas ignition sources can be provided directly by the laboratory or from portable butane gas tanks.

Includes a built-in cooling module to shorten cooling time between tests.

Automatically amends barometric pressure.

These features ensure accurate and efficient flash point testing for a wide range of substances.

Automatic Flash Point Tester

The QualiAFPT Automatic Flash Point Tester is designed based on the rapid equilibrium closed cup method. It efficiently tests the flash point of coatings, paints (including water-based paints), varnishes, lacquer bases, adhesives, solvents, Fatty Acid Methyl Ester (FAME), chemical reagents, flavors, spices, solid chemical products, viscous chemical products, air fuel oil, petroleum, and related items.

This series of Closed Cup Automatic Flash Point Testers come in two variations based on temperature range, and they comply with ISO 3679, ISO 3680, ASTM D 3278, ASTM D3828, and other relevant standards.
