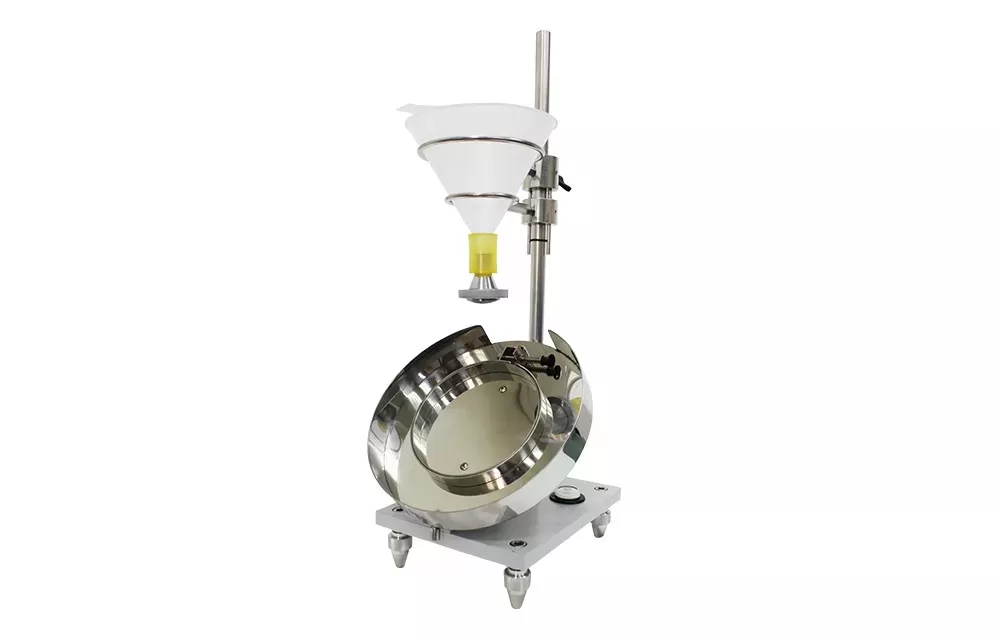

Water Repellency & Spray Tester – For Determination of Resistance to Surface Wetting Technical Specifications
| Specifications | |
|---|---|
| Specimen size | 18×18 cm |
| Specimen frame | Ø 152 mm |
| Inclined angle of specimen | 45° |
| Hole of spray nozzle | 19 holes, Ø 0.88 mm |
| Distance between the nozzle and center of specimen | 152 mm |
| Dimensions (W×D×H) | 27×33×66 cm |
| Weight | 14 kg |
| Spray test ratings | ||
|---|---|---|
| ISO | Surface status | AATCC & JIS |
| Level 1 | Complete wetting | 50 |
| Level 2 | Partial wetting | 70 |
| Level 3 | Wetting at spray points | 80 |
| Level 4 | Slight wetting | 90 |
| Level 5 | No wetting | 100 |
* Product design and specifications are subject to change without notice.
