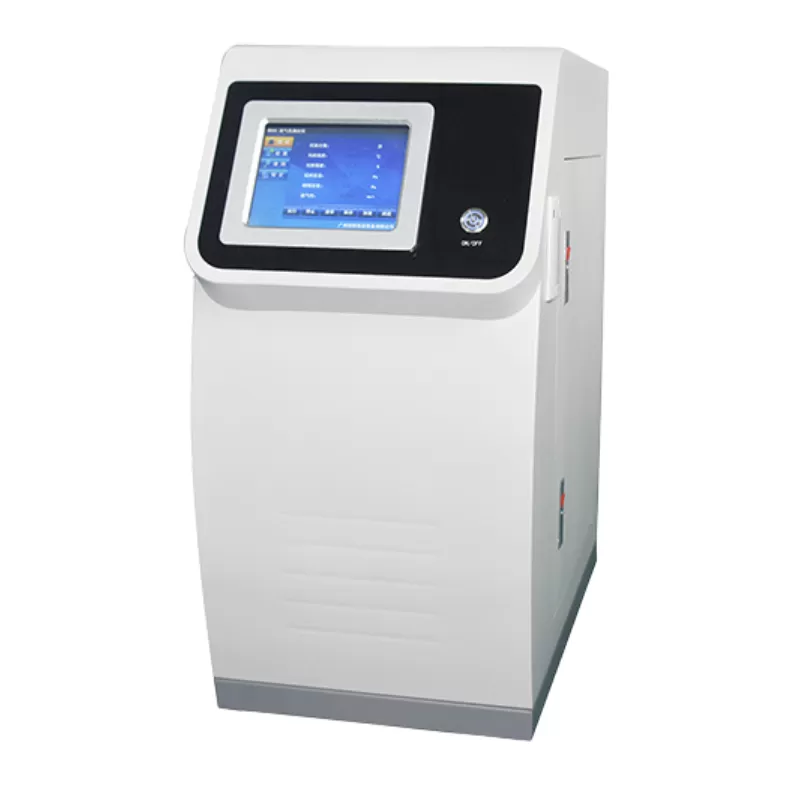

Textile Air Permeability Tester QT-N900

Contact

Product code: EQ43UXJHLF

Category: Textile Testing

Textile Air Permeability Tester QT-N900 is a high-precision instrument seamlessly blends mechanical, electronic, and…

Textile Air Permeability Tester QT-N900 is a high-precision instrument seamlessly blends mechanical, electronic, and software components, offering unparalleled accuracy in determining the air permeability of various textiles.

The QT-N900 features a user-friendly interface with a color touch screen, allowing real-time observation of permeability rates. Its automated controls, adjustable pressure settings, and advanced software make testing swift, efficient, and error-free.

Say goodbye to manual conversions, as the built-in micro-control system calculates and prints results effortlessly. Optimize your textile testing process with the QT-N900, a cutting-edge solution for high-precision air permeability testing.

Item	Specifications
Pressure Differential Measurement Range	1～4000Pa （pressure drop can be adjusted）
Test range	1～40000mm/s
Test error	≤±2%
Sample size	150mm×150mm
Test area	5cm²、20 cm²、50 cm²、100 cm²
Sample thickness	≤10mm

Nozzle Size	No.	1	2	3	4	5	6	7	8	9	10
Nozzle Size	Diameter (mm)	1.2	2	3	4	6	8	10	12	16	20
Instrument size		640×380×865mm（L×W×H）
Weight		70kg
Power supply		AC 220 V , 50 Hz (110V available upon request)

Textile Air Permeability Tester QT-N900 Key Features:

Automated cylinder control ensures quick sample fixation for accelerated testing.
Pressure is easily adjustable with automatic measurement and result calculation.
The mainframe comes up with a color touch screen, eliminating the necessity for an external computer. Users can seamlessly observe the permeability rate of the sample in real time.
Capable of testing multiple sets of data continuously; allows for querying, deleting groups of experimental results, and efficient report printing.
The professional software, featuring a straightforward interface, displays real-time test data (air permeability, variation coefficient, and other parameters). It supports diverse unit conversions (Test units: mm/s, l/(dm^2.min), l/(m^2.s), m^3/(m^2.min), m^3/(m^2.h), cfm, cm^3/(cm^2.h), ml/s, ml/min, l/s, l/min).
Automatic generation of standardized test reports, including sample name, specifications, serial number, airflow direction through the fabric, test area, pressure drop, standards, test dates, and detailed results (air permeability rate, variation coefficient, 95% confidence interval).

For those seeking an advanced Textile Air Permeability Tester, the QT-N900 stands out for its precision, efficiency, and user-friendly interface. Elevate your fabric testing capabilities with this innovative instrument.

Application of Textile Air Permeability Tester QT-N900

The Textile Air Permeability Tester QT-N900, a cutting-edge high-precision experimental testing instrument, seamlessly integrates mechanical, electronic, and software components. Specifically designed for determining the air permeability of fabrics, this state-of-the-art device is well-suited for testing various textile fabrics, including industrial fabrics, non-woven fabrics, and other breathable textile products.

It features a high-precision sensor that replaces the traditional water column differential pressure test, providing unparalleled accuracy. With its user-friendly LCD and touchscreen operation, setting test parameters is both convenient and swift. The built-in micro-control system efficiently calculates test data, prints results, and eliminates the need for manual conversion. The instrument's computer interface ensures simple and efficient operation, delivering superior accuracy.
