Tensile Elongation Stress Tester for PE-UHMW Molding and Extrusion Materials Features

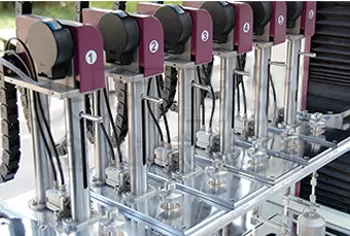

• The six testing stations operate independently, ensuring ease of use, precision, and reliability.

• Designed with six stations, the instrument measures tensile stress F(150/10) in a single test, significantly enhancing efficiency.

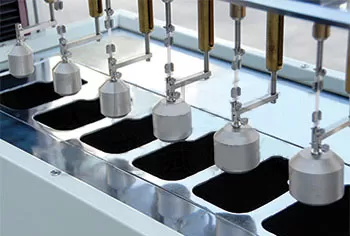

• The sample rack features a braking device and a 90mm limiter, allowing for simple and stable sample installation.

• A specialized lifting mechanism ensures smooth and reliable operation, providing an open and accessible test area.

• Equipped with an automatic smoke exhaust system, the instrument maintains a clean testing environment.

• An independent temperature protection circuit acts as a secondary safeguard, preventing overheating of the heating medium and reducing fire risks.

• Program-controlled testing automates key processes, including brake release, timing initiation, and fixed elongation time recording.

• The software automatically generates a double logarithmic curve for constant elongation stress-time, applies a built-in linear regression algorithm, and calculates constant elongation stress F(150/10).

• Advanced software charts displacement-time and temperature-time curves, analyzes the elongation process, and securely stores test data.

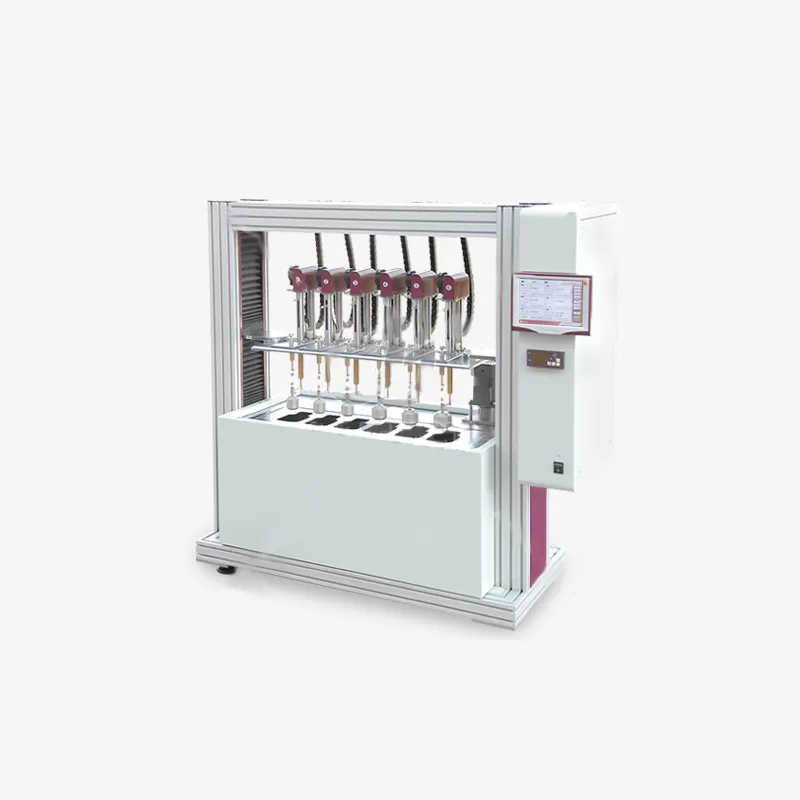

Tensile Elongation Stress Tester for PE-UHMW Molding and Extrusion Materials

Tensile Elongation Stress Tester PE-UHMW measures the tensile stress of ultra-high molecular weight polyethylene (PE-UHMW) molding and extrusion materials. The recorded stress values help assess the melt viscosity properties of the material. Designed for materials with exceptionally high molecular weight, it provides an alternative evaluation method when standard melt flow rate measurements are not applicable.
