ESCR Environmental Stress Crack Resistance Tester QualiESCR-100 Technical Specifications

Constant Temperature Bath
Number of stations	50
Volume	50L
Constant temperature	50°C ± 0.5°C and 100°C ± 0.5°C
Sample size (length × width × thickness)	(38 × 13 × Thickness) mm
Notch length	19 ± 0.1
Specimen holder	Inner groove width 12mm
Heat conducting medium	Soft water (recommended below 90°C), stator oil (above 90°C)
Voltage	(220-15% - 220 + 10%) VAC 50Hz 3kW (110V is also available)
Operating ambient temperature	10°C - 35°C
Main Unit Dimensions (length × width × height)	900 mm × 450 mm × 480 mm
Main Unit Weight	30kg

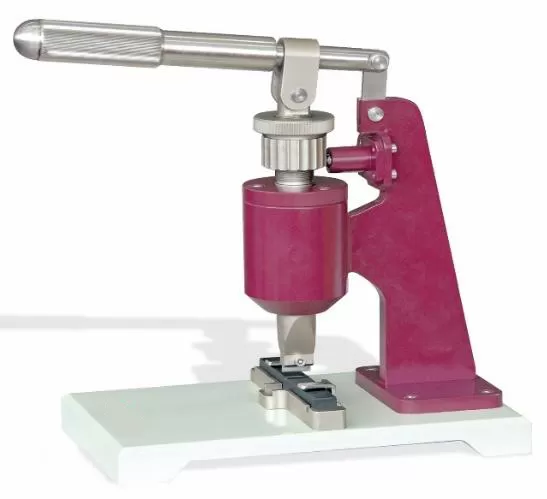

Nicking Device
Blade length	19 ± 0.1 mm
Blade thickness	0.23 ± 0.03 mm
Blade angle	14° ± 2°
Stroke of nicking device	(0-13) mm
Maximum depth of notch	3.5 mm
Unit dimensions (length × width × height)	300 mm × 120 mm × 300 mm
Device weight	12kg

Configuration

One Thermostatic bath
One Nicking device
One Sample bending device
One set of Sample Transfer Pliers
Three Sample Holders (if additional, please purchase separately)
Three Test Tubes (please purchase separately if necessary)
One Standard Sample
Three Blades

ESCR Environmental Stress Crack Resistance Tester QualiESCR-100 Key Features

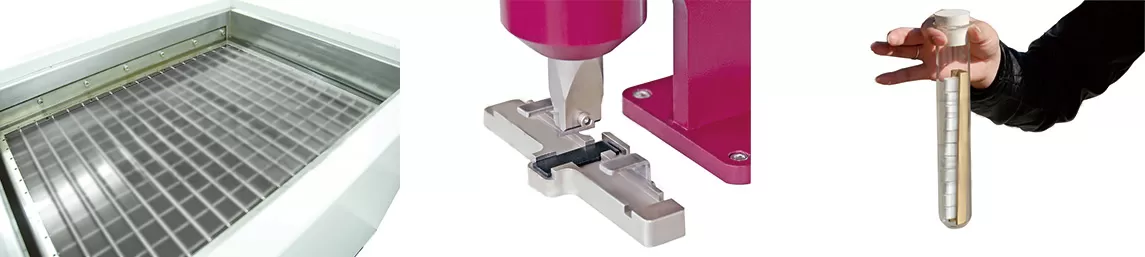

Complete Instrument Set Includes:

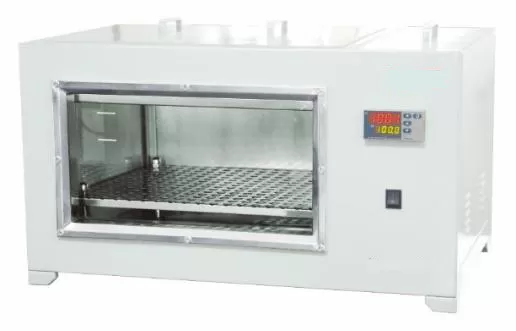

A. Constant Temperature Bath
B. Nicking Device
C. Specimen Bending Device
D. Specimen Transfer Clamp

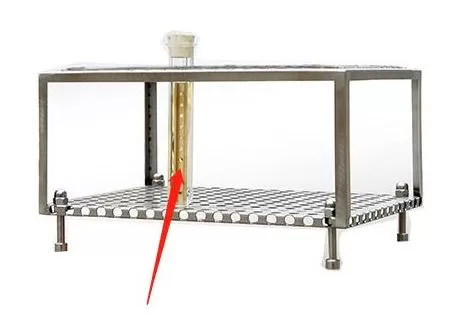

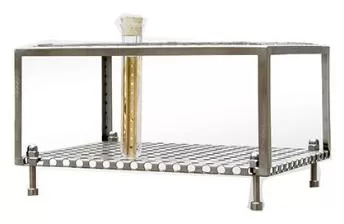

E. Specimen Holder
F. Test Tubes

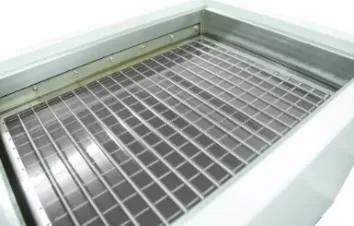

Durable Construction: The tank liner is made from high-quality 304 stainless steel, offering excellent heat and corrosion resistance.
Precision Temperature Control: Features a high-stability operational amplifier and dual-integral high-precision A/D conversion technology, ensuring accurate temperature regulation with an intuitive interface.
Even Temperature Distribution: Utilizes a centrifugal circulation stirring system for a uniform temperature field.
Efficient Testing Capacity: The bath box has superior insulation, a large capacity, and supports multiple tests simultaneously.

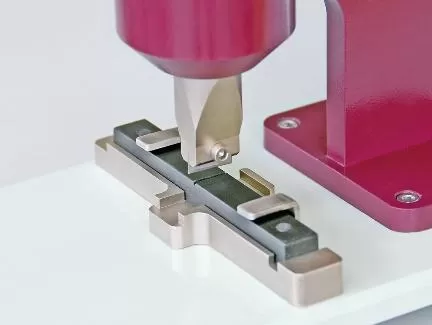

Advanced Nicking Device: Designed for precision with an adjustable depth range, it offers ease of use and high accuracy.
High-Performance Nicking Tool: Made from premium HSS steel, it delivers superior hardness, wear resistance, and a smooth, clean cut.
User-Friendly Design: The specimen bending device and transfer clamp are designed for convenience, efficiency, and ease of use.

ESCR Environmental Stress Crack Resistance Tester QualiESCR-100

ESCR Environmental Stress Crack Tester - QualiESCR-100 is designed to assess the susceptibility of ethylene plastics to environmental stress cracking, as outlined in ASTM D883. Following the ASTM D1693-01 standard, this tester evaluates how ethylene plastics respond to stress when exposed to substances such as soaps, wetting agents, oils, or detergents. Under these conditions, mechanical failure can occur in the form of cracking.

During testing, bent plastic specimens with a controlled surface imperfection are subjected to a surface-active agent. The percentage of specimens that crack within a specified timeframe is recorded, providing insight into the material’s resistance to stress-induced cracking.
