Concrete Creep Testing Rig – Automatic Concrete Creep Tester QualiCCTR-1000 is designed to measure creep deformation in…

Concrete Creep Testing Rig – Automatic Concrete Creep Tester QualiCCTR-1000 Technical Specifications

Maximum Testing Force	1000 kN
Measurement Range	1000 kN
Pressure Sensor	Spoke-type pressure sensor, which has high anti-eccentricity, overload capacity and sensitivity.
Jack Stroke	100 mm
Pressure Relative Error	< ±1%
LVDT Sensor	Stroke: 0~1 mm Linearity: < 0.1%
Temperature Sensor Accuracy	±0.5°C
Humidity Sensor Accuracy	±3%
Working Temperature	-20°C ~ +80°C
Spring Height	300 mm
Specimen Sizes (mm)	100×100×300, 100×100×400, 100×100×515, 150×150×300, 150×150×400, 150×150×450, 150×150×600, 200×200×600mm
Creep Frame Dimensions	750 × 750 × 2800 mm

Concrete Creep Testing Rig – Automatic Concrete Creep Tester QualiCCTR-1000 Features

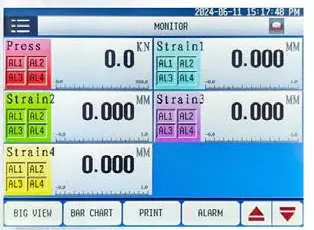

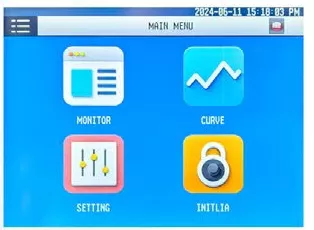

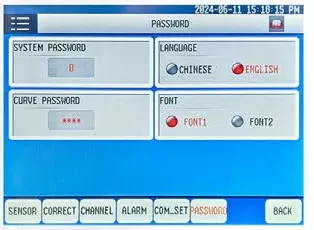

Touch Screen Control System: Displays and records pressure, compression deformation, temperature, and humidity in real time.

Safety Cover Option: Protects specimens from accidental damage and enhances operator safety.

Data Integrity: Test data saves continuously, preventing loss during power interruptions. Previous tests resume automatically once power is restored.

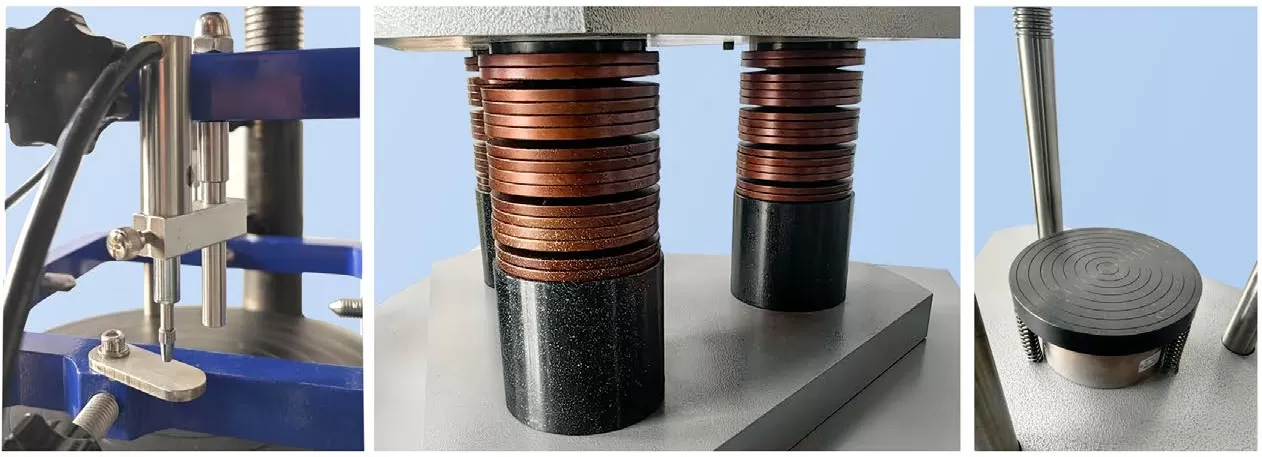

Advanced Disc Spring Design: Features a specialized disc spring assembly with anti-eccentricity support, ensuring even load distribution. The springs offer high strength, extended fatigue life, and minimal permanent deformation.

User-Friendly Frame Design: Optimized structure simplifies specimen and sensor alignment, leveling, and operation.

Electro-Hydraulic Pump Station: Includes a pressure oil cylinder for precise, easy pressure control and adjustment.

Secure Base Design: The loading frame has a stabilizing base for safe and stable operation.

High-Strength Bearing Plate: Constructed from rigid steel for reliable performance and durability.

Pre-Assembled Delivery: Ships fully assembled—simply install, secure, and begin testing.

Complete Accessories: Includes all necessary components for immediate on-site setup and testing.

Concrete Creep Testing Rig – Automatic Concrete Creep Tester QualiCCTR-1000

Concrete Creep Testing Rig – Automatic Concrete Creep Tester QualiCCTR-1000 is designed to measure creep deformation in concrete cylinder and cuboid specimens under sustained pressure over time. This system is used for testing concrete creep deformation under uniaxial pressure in a stable-temperature, dry environment.
