CDF CIF Freeze Thaw Tester – Freeze Thaw Resistance Features

• Automatic freezing and thawing according to a programmable temperature profile.
• Temperature profile is freely programmable.
• Includes a data logger with network interface.
• Uses environmentally friendly refrigerant, eliminating the need for an annual leak test (in accordance with EU 517-2014).
• Continuous data recording of the temperature.
• Cooling by air, with an optional combination of air and water.
• Optional higher heat power to perform the cube test according to CEN/TS 12390-9 or ASTM C666 Procedure A.

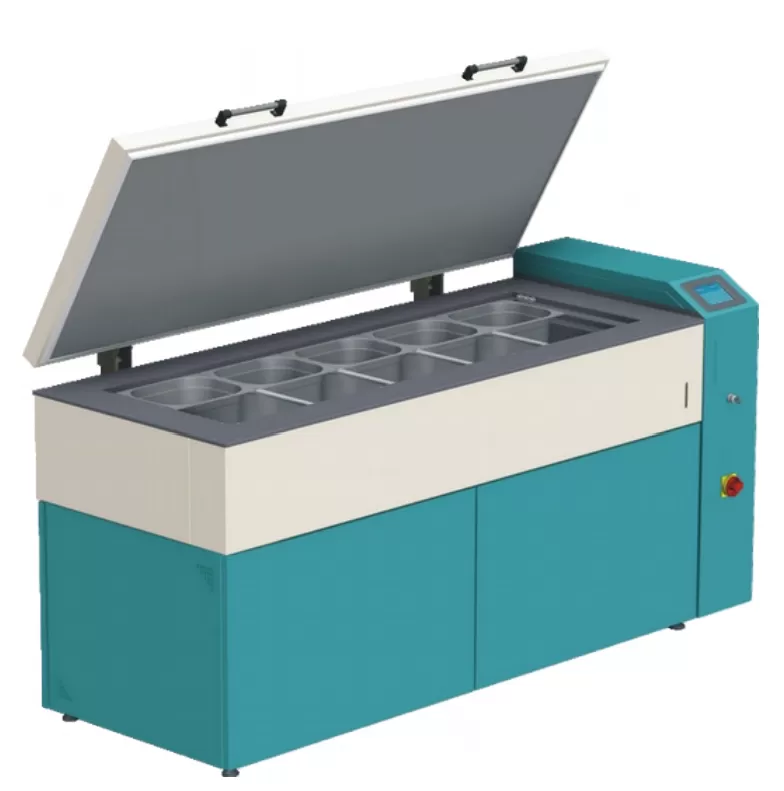

CDF CIF Freeze Thaw Tester – Freeze Thaw Resistance

The CDF/CIF-Freeze-Thaw Testing Equipment is a high-quality device designed for conducting freeze-thaw resistance tests on building materials. It features a microprocessor controller with an internet interface and complies with all relevant safety regulations for refrigeration and electrical systems.

The CDF machine supports the implementation of freeze-thaw resistance tests in accordance with RILEM Recommendations for CDF/CIF tests, CEN/TS 12390-9, CEN/TR 15177, ASTM C666 Procedure A, and other standards.

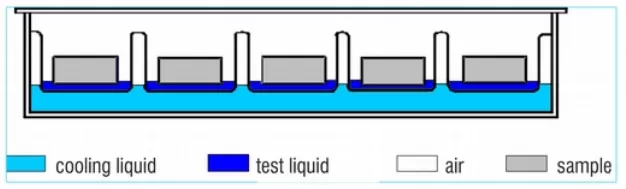

Testing setup

The specimen containers with the samples are suspended in a bath with heat-transfer liquid. This setup ensures optimal temperature distribution, rapid temperature adjustment, and a temperature gradient perpendicular to the tested surface. Due to the excellent thermal contact, the temperature can be maintained very accurately throughout the entire temperature curve.
