| Model | QualiMRAT |
|---|---|
| Weight of roller | 4.5 lb (two rollers can be used at the same time) |
| Material | Outer covering 80° ±5° (Shore A), rubber coating 6 mm |
| Speed of roller | 50 ~ 1200 mm/min (Stepless setting) |
| Stroke | Screen touch settings |
| Width of Roller | 45 ± 1.5 mm |
| Diameter of Roller | 97 ± 2.5 mm |
| Power | Single phase, 110 ~ 240V (110V is also available) |
| Dimension | 580 X 350 X 280 mm |
| Weight | 33 kgf |

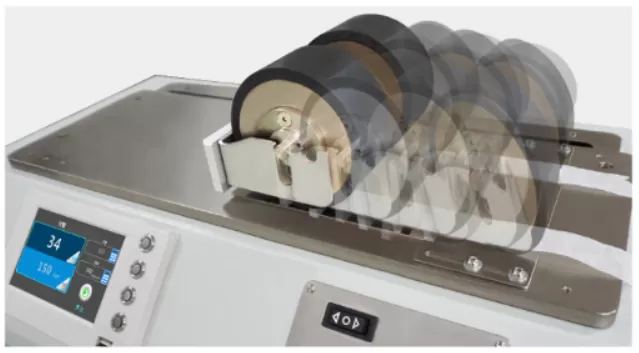

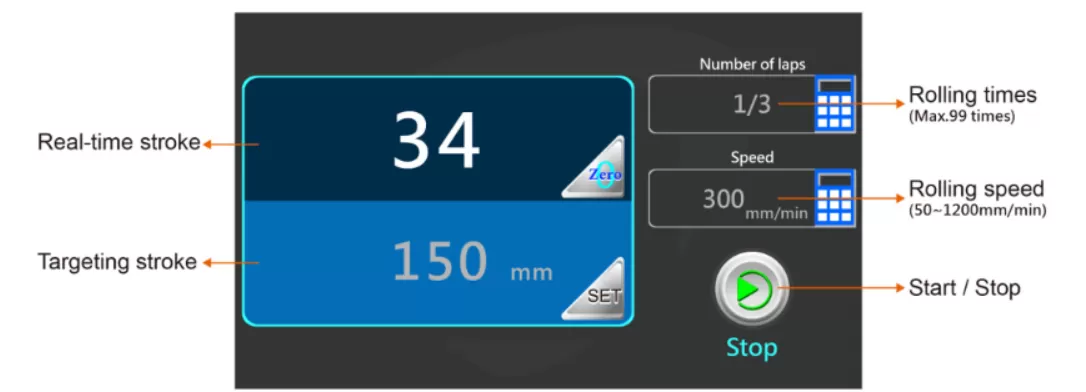

The preparation of samples for tape peeling tests is performed using a standard rubber roller to roll and adhere the tape onto a steel plate or specific material. Manual application of the tape can be inconsistent and easily affect the test results. However, by using a motorized rolling roller to make the samples, the consistency and stability of the adhesion can be ensured. The QualiMRAT Motorized Roller for Pressure-Sensitive Adhesive Tape Testing operating interface features a 5-inch touchscreen, providing a simple and clear user interface. The rolling speed can be freely set between 50 to 1200mm/min, and up to 99 reciprocating rolls and a maximum adhesive distance of 300mm can be programmed.
