Reference Standards

STANDARDS THE FLAMMABILITY TESTER FOR RUBBER AND PLASTICS COMPLIES WITH:

ASTM D4986; ASTM D3801; ASTM D4804; ASTM D5048; ASTM D635; ISO 1210; ISO 9773; ISO 8030; ISO 9772; UL 94; IEC 60695-11-10; VDE VDE 0471-11-11;

Testing Configuration

TYPES OF TEST THAT CAN BE PERFORMED

HBF (Horizontal Burning Foamed Material), HB (Horizontal Burning), MVB (Material Vertical Burning), VB (Vertical Burning)

TEST CABINET

Stainless steel cabinet with tempered glass viewing window and internal light.

BURNER

Conforming to ASTM D5025 and CEI IEC 60695-11-4 standards. With support for flame angle set (0°, 20°, 45°).

TEMPERATURE CONTROL

Internal Digital thermometer in conformity with ASTM D 5207 standard

GAS FLOW REGULATION

(METHANE) Integrated Flow meter

TIMER

Digital Timer with 0.1 sec. resolution. The timer permits to set the flame exposition time. At the end of the countdown for flame exposition, the timer permits to count flame extinction time.

SLIDE FOR THE REGULATION OF THE POSITION

The slide is controlled by an external handle that permits to move the burner inside the chamber.

ASPIRATION OF FUMES

Exhaust fan to remove fumes at the end of the test

Safety Devices

SAFETY DEVICES

Safety valve for gas flow interruption without flame

LABELLING

CE Labelling

Calibration

CALIBRATION

Calibration Report conforming to UL 94 with traceability to primary standards

CALIBRATION OF TEST FLAME

Internal Thermometer with thermocouples for 20 mm Test Flame according to ASTM D 5207 standard.

Technical specifications

POWER

220 VAC ±10%,50 Hz ±3,4 A,single phase, 40 W - 110 VAC ±10%, 60 Hz ±3 on request

GAS SUPPLY

The Flammability Tester for Rubber and Plastics must be connected to a Methane Source or Methane Cylinder.
A pressure reducer (not included) is required to supply the instrument with a pressure of 1 bar.
The connection to the gas network must be carried out by a qualified technician.

INTERNAL DIMENSION

(W x D x H) 850 x 700 x 812 mm

EXTERNAL DIMENSION

(W x D x H) 925 x 800 x 1235 mm

WEIGHT

92 kg

Flammability Tester for Rubber and Plastics Feature:

Key Features:

Standout Features of the Flammability Tester for Rubber and Plastics for Flame Resistance Testing, as per UL 94 Standard:

Enhanced Design:

Crafted with a stainless steel cabinet, featuring a tempered glass viewing window and an interior light.
Equipped with a Bunsen burner in alignment with ASTM D5025 standard.
Incorporates a flow meter for precise gas flow control.

Versatile Flame Management:

Facilitates flame angle customization with support for flame angle set at 0°, 20°, and 45°.
A slide mechanism allows for easy flame position adjustment.

Accurate Sample Handling:

Fitted with a sample holder designed to meet standards, complete with adjustable sample positioning.

Integrated Measurement Capabilities:

Houses a digital thermometer to accurately gauge flame temperature, seamlessly integrated into the instrument.
A digital timer, featuring a resolution of 0.1 seconds, precisely measures test durations.

Exhaustive Safety:

Features an exhaust fan strategically incorporated to efficiently dispel combustion fumes, ensuring safety and comfort during testing processes.

Selecting Flammability Check equips you with a cutting-edge instrument featuring advanced features for comprehensive flame resistance testing, aligned with UL 94 standards.

Technical Features

Bunsen Burner:

The Bunsen burner adheres to ASTM D5025 and CEI IEC 60695-11-4 standards, featuring the following components:

Incorporated safety sensor, designed to halt gas flow when the flame is not present.
Adjustable air-to-gas mix control facilitated by a dedicated ring.
The support structure can be tilted, catering to testing scenarios with angled flames (0°, 20°, 45°).

Flammability Tester for Rubber and Plastics Bunsen Burner

Temperature Calibration:

The Flammability Tester for Rubber and Plastics comes equipped with the following components for temperature calibration:

An internal thermometer integrated with a thermocouple, tailored for a 20 mm Test Flame in line with the ASTM D 5207 standard.
A ruler enables verification of the flame height.

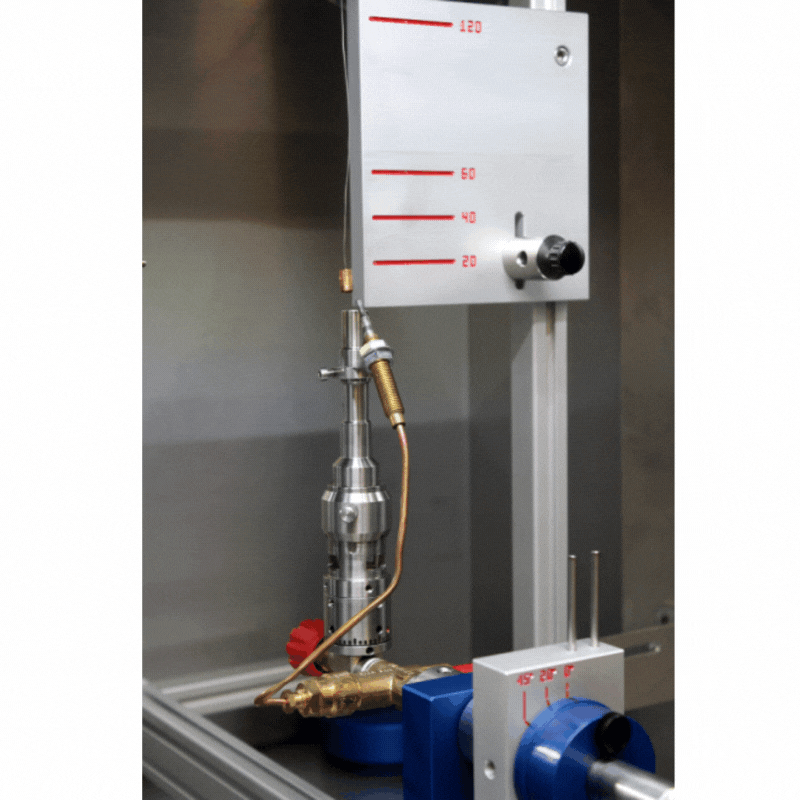

Both the thermocouple and ruler are positioned within the chamber of the instrument. To assess the flame's temperature, simply adjust the burner's position beneath the thermocouple using the movement knob. This streamlined process ensures accurate and hassle-free temperature measurement.

Flammability Tester for Rubber and Plastics Temperature Calibration

Burner Positioning Mechanism:

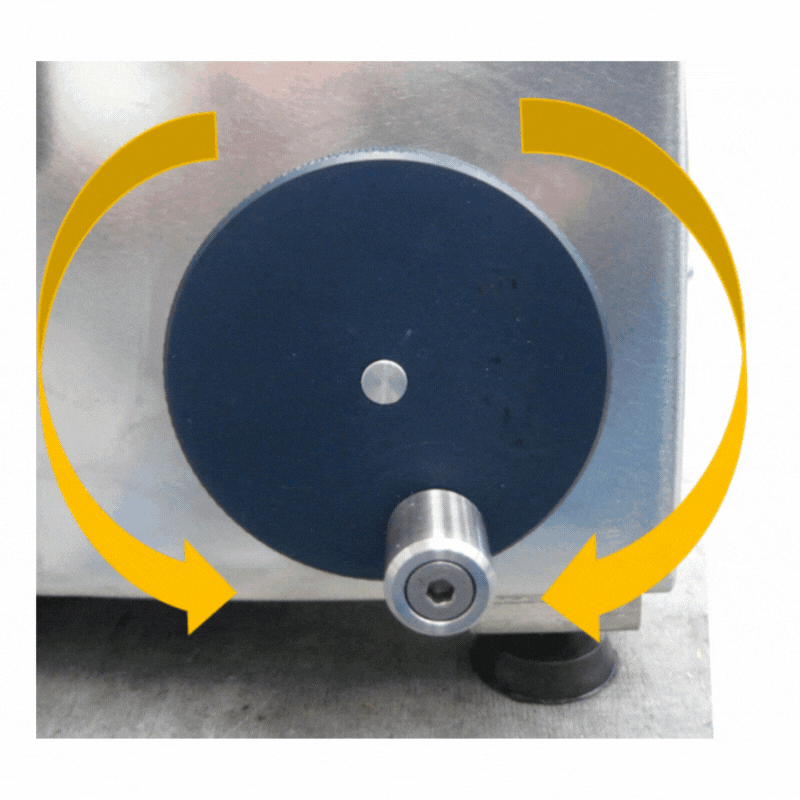

The Flammability Tester for Rubber and Plastics incorporates a user-friendly mechanism for relocating the burner within the chamber. A conveniently located knob outside the cabin enables the manipulation of the slide, facilitating the horizontal movement of the burner.

This device empowers the operator to meticulously manage the flame's precise placement beneath the specimen. This control is achieved effortlessly through the inspection window, ensuring optimal testing conditions and accurate positioning.

Flammability Tester for Rubber and Plastics Burner Positioning Mechanism

Why Opt for Flammability Tester for Rubber and Plastics?

Standout Features of the Flammability Tester for Rubber and Plastics for Flame Resistance Testing, as per UL 94 Standard

Control Panel Functionality:

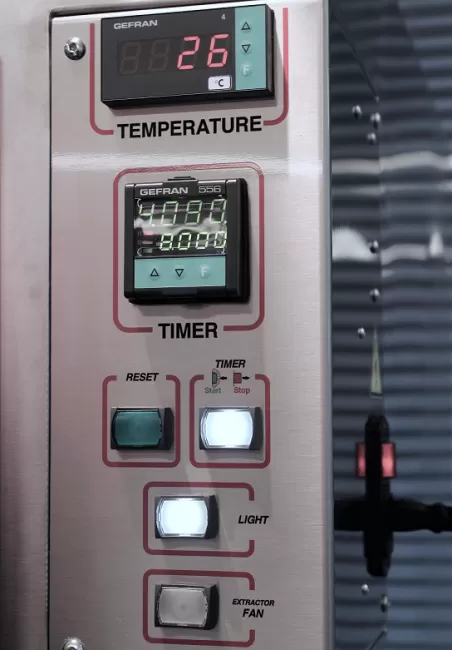

The control panel encompasses an array of convenient functions, including:

A digital display showcasing the flame temperature reading.
Timer mechanism for precisely tracking test durations.
Start and Stop buttons dedicated to Timer operation.
Reset button, enabling Timer to reset when needed.
Button for activating the internal light source.
Button designed to initiate fume aspiration for enhanced safety and comfort during testing procedures.

Flammability Tester for Rubber and Plastics Control Panel

Gas Flow Adjustment:

To operate the Flammability Tester for Rubber and Plastics, it should be connected to a methane source. The instrument features the following components for gas flow management:

Manometer spanning a range of 0 to 25 mBar, aiding in pressure measurement.
Fluxometer with a flow regulation knob, adjustable within the range of 0.04 to 0.36 NL/min.
Another Fluxometer with a flow regulation knob, with an adjustable range of 0.2 to 1.3 NL/min. These elements allow precise control over the gas flow to ensure accurate and consistent testing conditions.
