Electrical Cable Halogen Acid Gas Content & PH Conductivity Tester - IEC 60754-1 & 2 Features

• Split-type tube furnace for controlled material combustion
• Dual-shell housing made of textured stainless steel
• Fan-cooled design ensures a low external surface temperature
• Heating capability up to 1100°C
• Split configuration allows easy insertion of the working tube
• Single-zone setup with integrated switchgear and control unit
• High-temperature quartz glass tube, closely fitted to the furnace diameter
• Mass flow meter regulates air supply, with a maximum flow of 3 L/min
• Digital airflow display with 0.1 L/min resolution
• Digital timer included for setting air supply duration
• Integrated drying unit for moisture-free air supply
• Includes 30 ceramic sample boats
• Supplied with magnetic stirrers
• pH meter with a measurement range of -2.00 to 19.99 pH and accuracy of 0.1/0.01 pH
• Conductivity meter with a range of 0.00 to 20.00 µS/cm and accuracy of 0.01 µS/cm

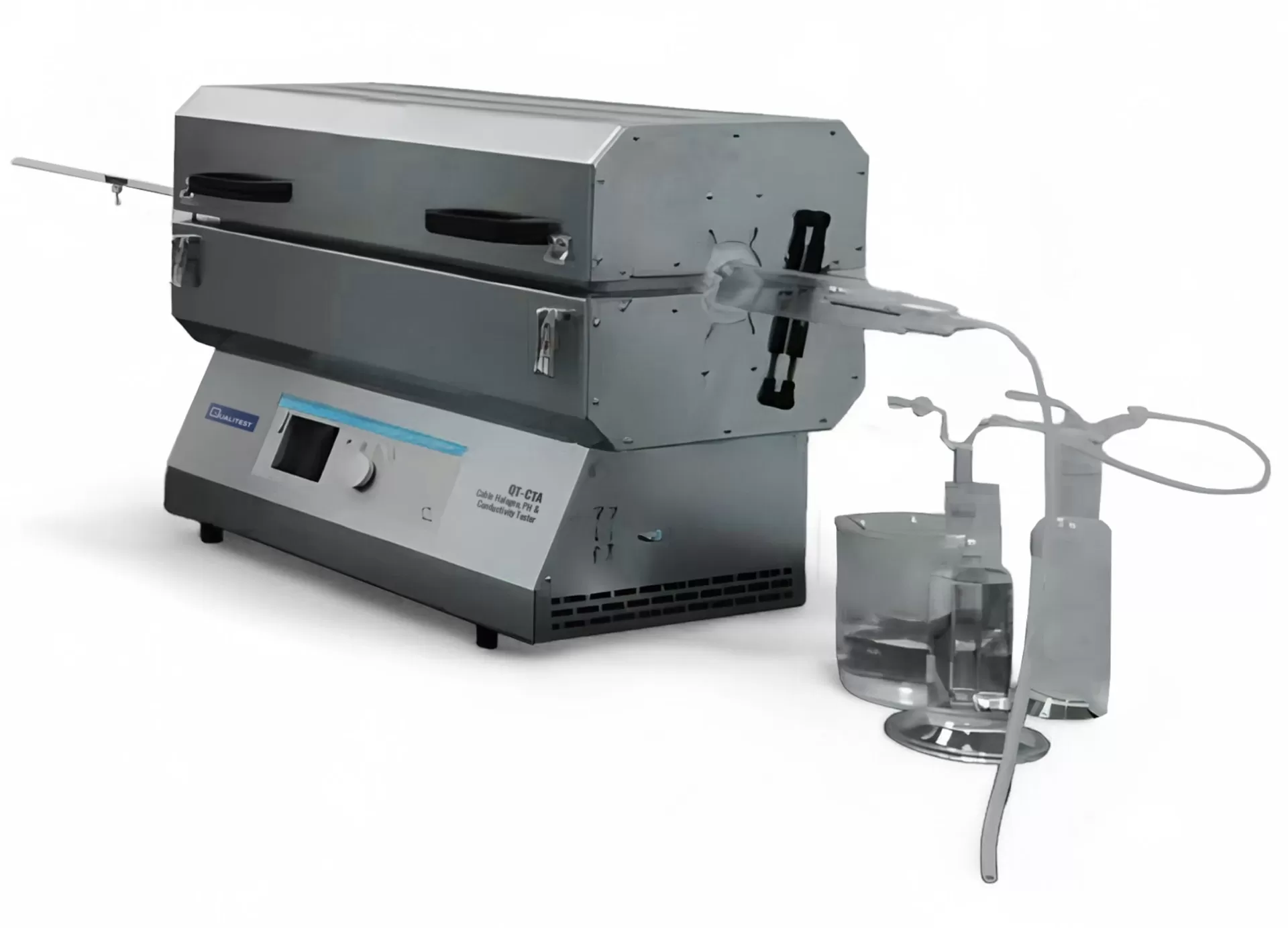

Electrical Cable Halogen Acid Gas Content & PH Conductivity Tester - IEC 60754-1 & 2

Electrical Cable Halogen Acid Gas Content & pH Conductivity Tester QT-CTA device is designed to measure the level of acid gases released during the combustion of cable materials by analyzing pH and electrical conductivity. The test sample is inserted into a tube furnace and burned for 30 minutes. The resulting gases are directed into wash bottles containing demineralized water, where pH and conductivity levels are recorded.
